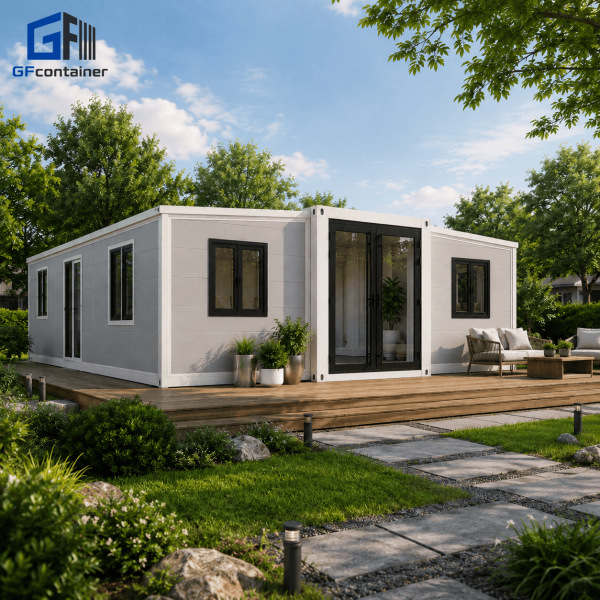

40ft Double-Wing Expandable Container House
Open / 2–4 Bedroom Layouts
3–6 Person Capacity
Kitchen & Bathroom
1 Set / 40HQ
- Worker dormitories and accommodation for overseas project camps
- Resort cabins, holiday homes and modular rental units
- Temporary offices, meeting rooms and project headquarters
- Temporary clinics, emergency facilities and integrated camp projects
Up to 72m² of Flexible Modular Space
A large factory-prefabricated modular building that expands from a compact transport unit into approximately 72m² of usable space. Open-plan, 2-bedroom, 3-bedroom and 4-bedroom layouts can be customized for residential, commercial and overseas project applications.
Flexible Floor Plans
3–6 Person Capacity
Integrated Utilities
A Large Expandable House for Residential and Project Use
The 40ft expandable container house keeps a compact width during transportation and unfolds on site to create a wide, functional interior. It is designed for overseas buyers requiring larger accommodation, efficient installation and flexible room planning.
The expanded building provides approximately 72m² of space for living, accommodation, office or medical functions.
Open-plan, 2-bedroom, 3-bedroom and 4-bedroom configurations can be developed according to project requirements.
Steel structure, wall panels, electrical wiring, plumbing interfaces and selected fixtures can be prepared before shipment.
Standard 40ft Double-Wing Configuration
The following information is based on the standard configuration. Layout, insulation, doors, windows, electrical systems and interior facilities can be adjusted according to the destination market.
40ft Double-Wing Expandable Container House
L11800 × W6220 × H2480mm
L11540 × W6060 × H2240mm
L11800 × W2200 × H2480mm
Approximately 72m²
Approximately 3–6 people
Open space, 2 bedrooms, 3 bedrooms, 4 bedrooms or customized partitions
Approximately 12kW
Approximately 4.6 tons
Fully galvanized high-strength steel frame
65mm EPS color-coated steel sandwich panels
50mm EPS color-coated steel sandwich panels
50mm EPS roof panel with 0.4mm corrugated external steel sheet
18mm fire-resistant cement fiberboard and 18mm bamboo plywood
920 × 920mm PVC-steel sliding window
840 × 2030mm steel entrance door
220V, 50Hz with 32A residual-current circuit breaker
Approximately 1 set per 40HQ
EXW, FOB, CFR and CIF available

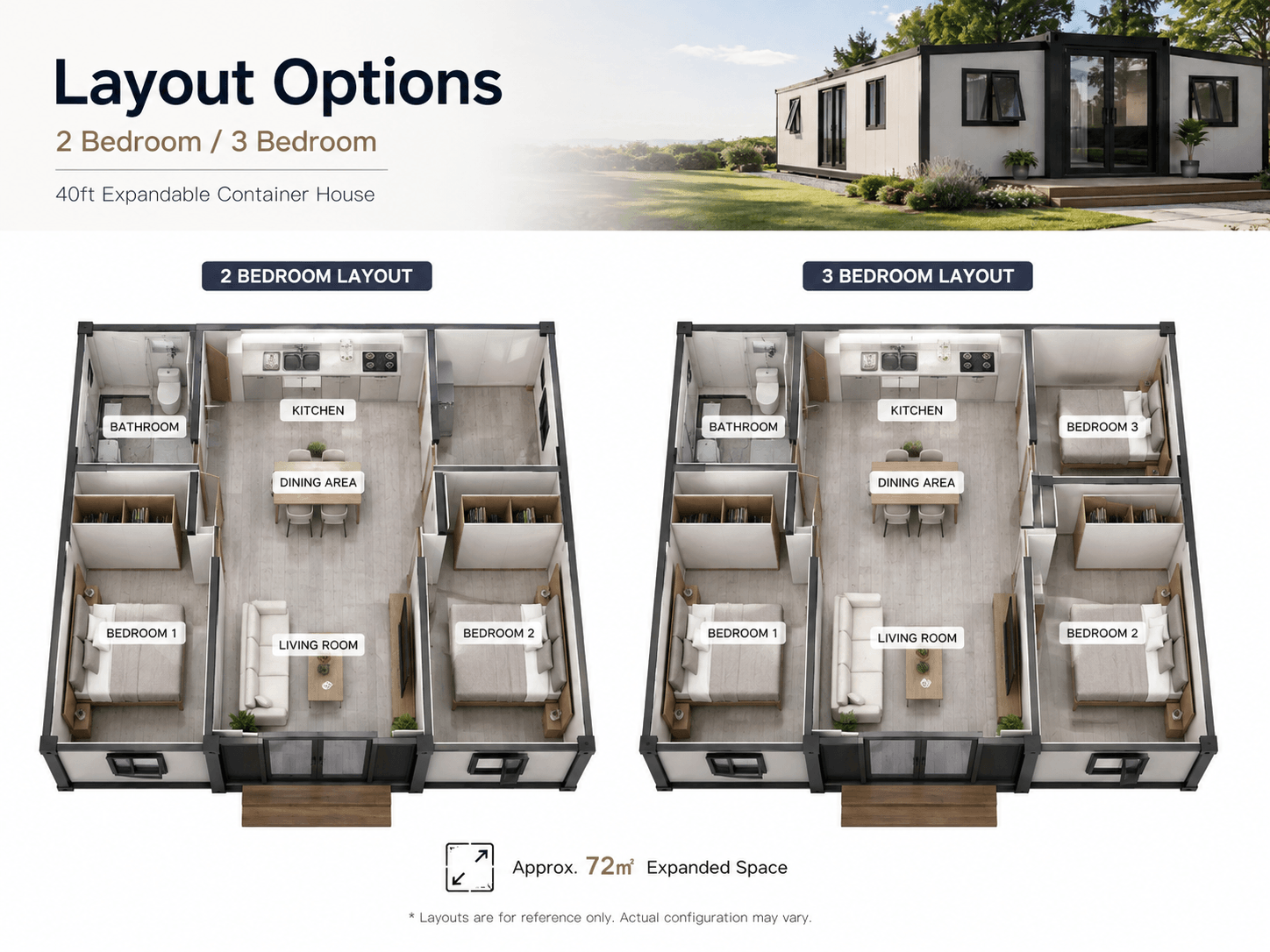

Flexible Layouts for Different Project Requirements
The large expanded interior can be divided into private rooms, shared living areas, offices, treatment rooms or multifunctional project spaces. Door, window and partition positions can be adjusted according to the confirmed floor plan.
Open-Plan Layout
- Large continuous multifunctional space
- Suitable for offices, clinics or meeting rooms
- Furniture and work areas can be arranged freely
- Structural support columns may be required
2-Bedroom Layout
- Two private bedrooms
- Large shared living and dining area
- Integrated kitchen and bathroom
- Suitable for family or project housing
3-Bedroom Layout
- Three separated sleeping rooms
- Shared living and dining space
- Kitchen and sanitary facilities
- Suitable for worker accommodation
4-Bedroom Layout
- Higher accommodation capacity
- Efficient room and corridor planning
- Shared bathroom and kitchen options
- Suitable for dormitory-style projects
A Wider Interior with More Natural Light
The expanded central area can accommodate a living room, dining area, meeting space or shared activity zone. Large windows and a clear circulation route help create a brighter and more comfortable interior.
The living area can connect bedrooms, kitchen, bathroom and entrance spaces efficiently.
Sofas, dining tables, storage cabinets, beds and office furniture can be selected according to use.
Open areas may use support columns, while engineered partition walls can provide support in divided layouts.
Integrated Kitchen and Bathroom Options
Kitchen cabinets, sanitary fixtures, water supply, drainage and electrical interfaces can be prepared at the factory according to the confirmed layout and project budget.
Kitchen Configuration
- Base cabinets and wall cabinets
- Countertop, sink and faucet options
- Cooking appliance and refrigerator space
- Lighting and appliance-ready sockets
Bathroom Configuration
- Toilet, vanity and wash basin
- Shower enclosure and floor drainage
- Mirror, exhaust fan and lighting
- Water-heater and plumbing interfaces
Factory Preparation
- Water supply and drainage pipelines
- Electrical wiring and distribution box
- Switches, sockets and lighting
- Sanitary fixture installation options
Optional Upgrades
- Furniture and appliance packages
- Customized cabinet colors and finishes
- Smart lighting and control systems
- Additional bathroom or utility areas

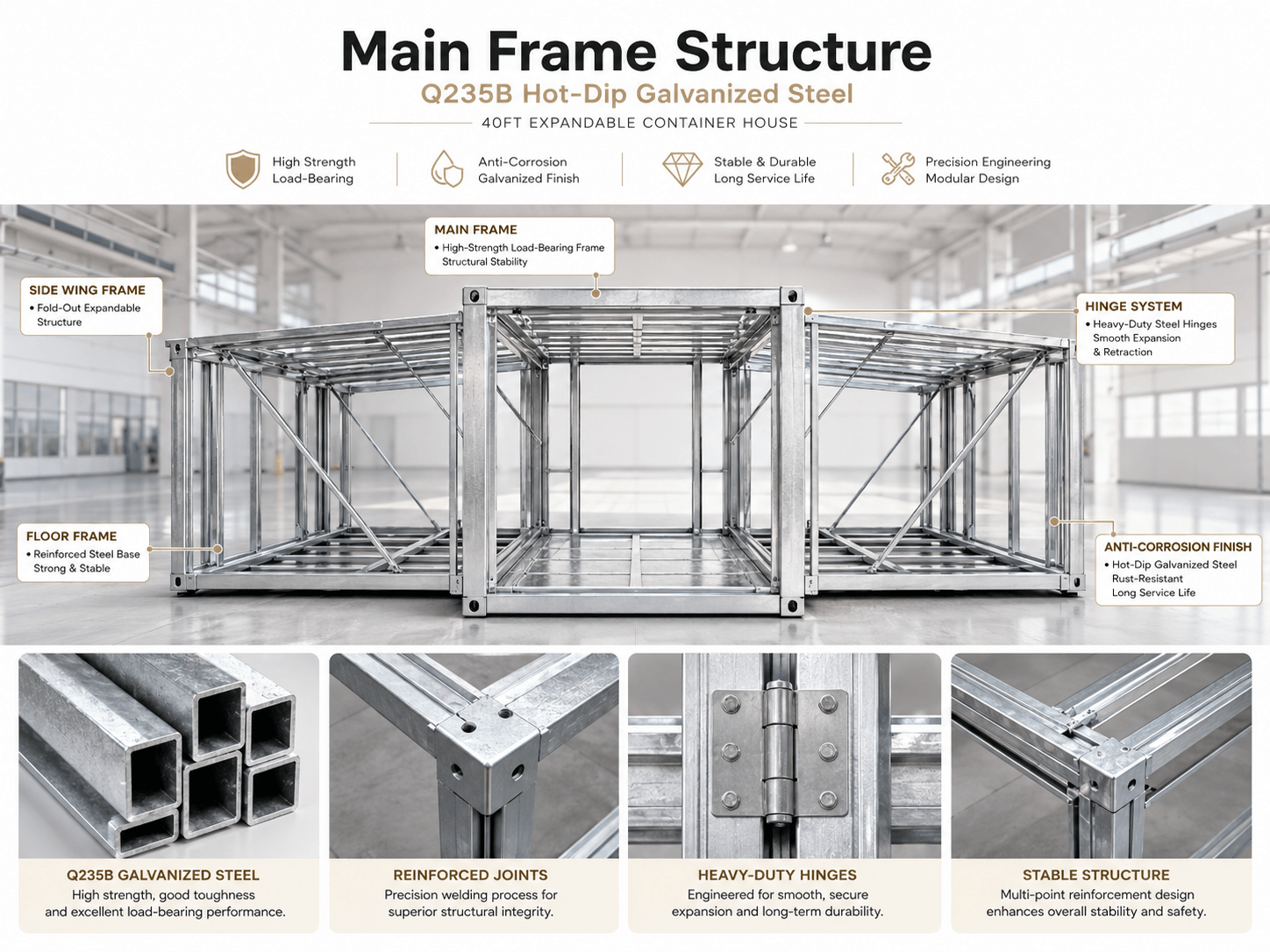

Galvanized Steel Frame for Folding and Expansion
Galvanized high-strength steel members, formed steel components and heavy-duty hinges create the main expandable structure. Material specifications can be upgraded according to climate, insulation and destination-market requirements.
Main Frame
- 80 × 140 × 3.0mm galvanized main side beams
- 2.5mm formed steel end-frame components
- Galvanized columns and lifting connections
- Electrostatic powder-coated surface finish
Expandable Wings
- 40 × 80 × 1.8mm upper-frame members
- 60 × 80 × 2.5mm lower-frame members
- 130mm galvanized folding hinges
- Mechanical locking and connection system

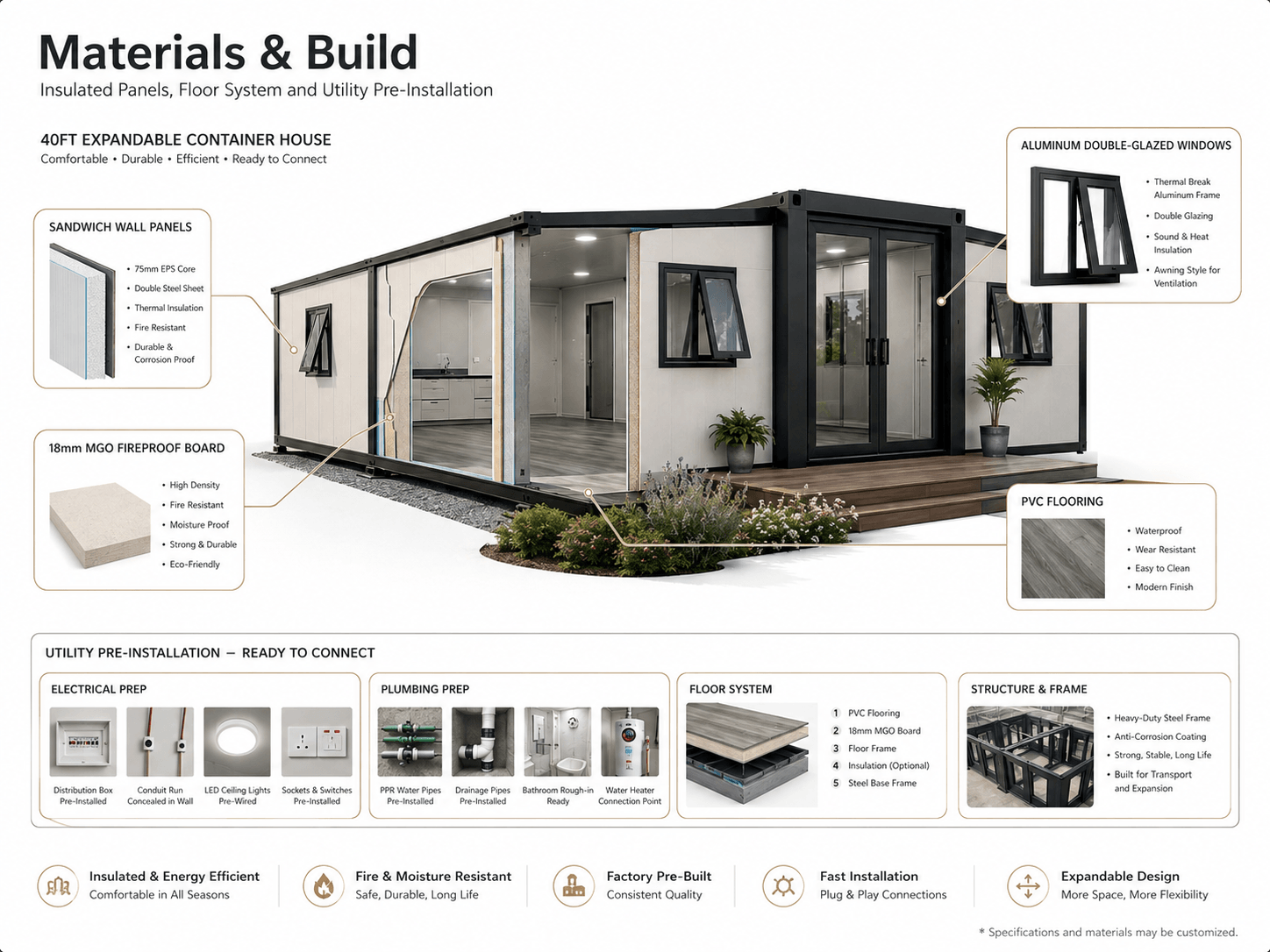

Wall & Roof System
- 65mm EPS external wall panels
- 50mm EPS internal partition panels
- 50mm insulated roof panel system
- 0.4mm corrugated external roof sheet
Floor, Door & Windows
- 18mm fire-resistant cement fiberboard
- 18mm bamboo plywood in expandable wings
- 840 × 2030mm steel entrance door
- 920 × 920mm PVC-steel sliding windows
Factory-Prepared for Destination-Market Requirements
The standard electrical system is designed for 220V and 50Hz. Voltage, frequency, sockets, switches, cables and circuit protection can be adjusted according to the destination country.
Approximately 12kW
220V, 50Hz
32A residual-current circuit breaker
6mm²
4mm²
2.5mm²
1.5mm²
Socket, switch and circuit standards can be customized
Compact Shipping with Rapid Site Deployment
Before shipment, the two expandable wings are folded into the central structure, reducing the transport width to approximately 2.2m. After unloading and positioning, the roof, floor and side sections are expanded and secured.
Compact transport state for international delivery.
Large interior space after the two wings are opened.
Major structural and utility systems are prepared before shipment.
Standard loading quantity for one 40ft high-cube container.
Configure the Building Around Your Project
Layout, room quantity, exterior appearance, insulation, kitchen, bathroom, furniture and utility systems can be customized according to project use and local requirements.
Bedroom quantities, bathroom positions, corridors, offices and multifunctional rooms can be adjusted.
Exterior colors, wall finishes, doors, windows, entrance positions and branding are selectable.
Cabinets, furniture, flooring, lighting, sanitary fixtures and appliances can be configured.
Smart lighting, access control and selected home-control systems can be integrated when required.
Suitable for Accommodation and Rapid-Deployment Projects
The large expanded space and flexible internal partition system make this model suitable for residential, hospitality, commercial, healthcare and overseas project applications.
Accommodation for construction, mining, energy and infrastructure personnel.
Spacious modular accommodation for resorts, campsites and tourism projects.
Project offices, meeting rooms, reception areas and management facilities.
Residential, office, medical and service buildings for overseas project sites.
Consultation rooms, treatment areas, pharmacies and medical-support facilities.
Rapid accommodation for relocation, reconstruction and disaster-response use.
Modular family or group accommodation for rental projects.
Customized spaces for education, hospitality, healthcare or commercial use.
Frequently Asked Questions
How much space does the house provide after expansion?
The standard expanded size is L11800 × W6220 × H2480mm, providing approximately 72m² of usable floor area.
Which floor plans are available?
Open-plan, 2-bedroom, 3-bedroom and 4-bedroom layouts are available. Room quantities and functional partitions can also be customized.
Does an open-plan layout require support columns?
A large fully open space generally requires structural support columns. In divided layouts, engineered partition walls can replace selected support columns.
Can the kitchen and bathroom be installed at the factory?
Yes. Kitchen cabinets, sanitary fixtures, water supply, drainage and electrical interfaces can be prepared according to the confirmed configuration.
Can the electrical system meet local standards?
Yes. Voltage, frequency, sockets, switches, cables and circuit protection can be customized according to the destination market.
How many units can be loaded in one 40HQ?
The standard loading quantity is approximately one 40ft expandable container house per 40ft high-cube shipping container.
How can I receive an accurate quotation?
Please provide the required quantity, destination port, preferred layout, number of bedrooms, kitchen and bathroom requirements, insulation choice and local electrical standard.
Planning a 40ft Expandable Container House Project?
Send us your required quantity, destination port, preferred floor plan and interior configuration. We will prepare a suitable layout, loading plan and export quotation.
