40ft 3 Bedroom Expandable Container House
Approx. 72m² Space
Large Living Area
Separate Kitchen
1 Set / 40HQ
- Family homes and long-term modular residential projects
- Holiday cabins, resort accommodation and rental housing
- Worker housing and overseas integrated project camps
- Rapid-deployment housing requiring three private bedrooms
Three Private Bedrooms in One Expandable Family Home
A large factory-prefabricated modular house with three adjacent bedrooms, a spacious shared living and dining area, a separate kitchen and a dry-wet separated bathroom. The two wings expand directly from the central structure to create approximately 72m² of practical living space.
Approx. 72m² Space
Separate Kitchen
Dry-Wet Bathroom
A Spacious Three-Bedroom Layout for Family Living
The 40ft 3 Bedroom Expandable Container House is designed for buyers who need multiple private rooms without sacrificing the shared living area. All three bedrooms are arranged side by side along one section of the house, with no corridor separating the rooms.
All bedrooms are positioned next to one another and open directly toward the central shared space for efficient room planning.
The central space accommodates a sofa, dining table, storage furniture and comfortable family circulation.
The two wings unfold from the main house, eliminating the need to connect separate container modules at the project site.
Standard Product Information
The specifications below are based on the standard 40ft double-wing expandable model. Materials, interior finishes, utilities and electrical standards can be adjusted according to the destination market.
40ft 3 Bedroom Expandable Container House
L11800 × W6220 × H2480mm
L11540 × W6060 × H2240mm
L11800 × W2200 × H2480mm
Approximately 72m²
Approximately 3–6 people
3 bedrooms, living area, dining area, separate kitchen and bathroom
Three adjacent bedrooms without an internal corridor
Approximately 12kW
Approximately 4.6 tons
Fully galvanized high-strength steel frame
65mm EPS color-coated steel sandwich panels
50mm EPS color-coated steel sandwich panels
50mm EPS insulated roof panel with 0.4mm external steel sheet
18mm fire-resistant cement fiberboard and 18mm bamboo plywood
920 × 920mm PVC-steel sliding window
840 × 2030mm steel entrance door
220V, 50Hz with 32A residual-current circuit breaker
Approximately 1 set per 40HQ
EXW, FOB, CFR and CIF available
Efficient Zoning Without a Bedroom Corridor
The three bedrooms are positioned directly next to one another. Each bedroom opens toward the shared interior area, avoiding a separate corridor and allowing more floor space to be used for the living room, dining area, kitchen and bathroom.
The bedrooms form one continuous private zone with individual doors and independent furniture arrangements.
Each bedroom connects directly to the central living area rather than opening into a narrow internal passage.
The kitchen and bathroom are grouped at one end of the layout, keeping cooking and sanitary functions away from the bedrooms.
A Wide Shared Space for Everyday Family Use
The central area serves as the main family activity zone. It can accommodate a large sofa, coffee table, television cabinet and dining table while maintaining a clear route between the bedrooms, kitchen, bathroom and entrance.
Living and dining functions share one bright and spacious interior without unnecessary partitions.
Multiple windows can be arranged around the expanded structure to improve daylight and indoor airflow.
Sofa, dining furniture, television cabinet, storage and decorative finishes can be supplied as optional items.

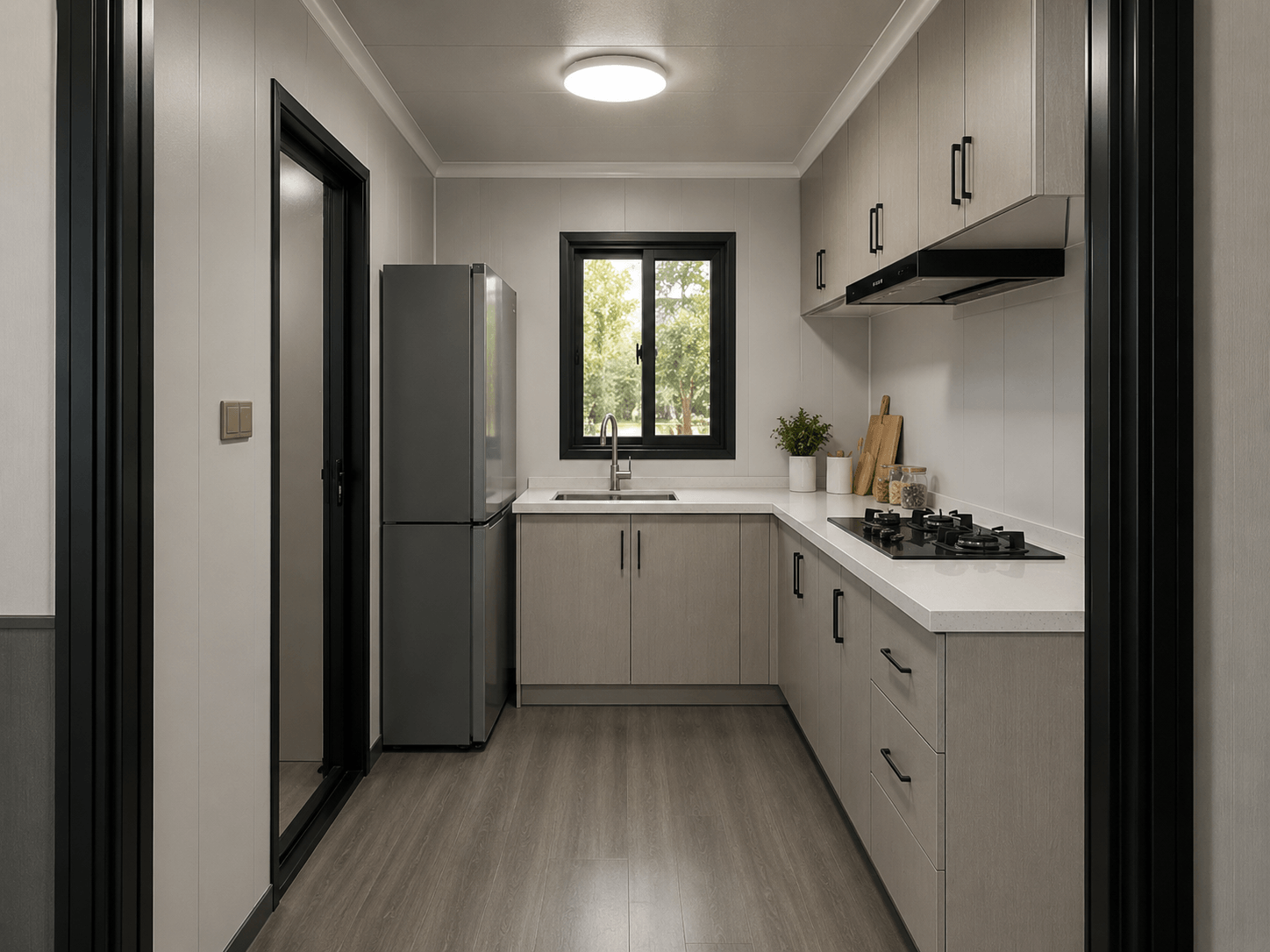

An Independent Cooking Area for Daily Meals
Unlike a simple kitchenette installed in the living room, this layout provides a more independent kitchen zone. Cabinets, countertops and appliance positions can be configured according to family use and local utility standards.
Base cabinets, upper cabinets, countertop, sink and storage can be arranged in an L-shaped or linear configuration.
Space can be prepared for a refrigerator, cooker, range hood, microwave and other household appliances.
Water supply, drainage, electrical sockets and appliance circuits can be completed before shipment.
Separated Shower and Sanitary Areas
The bathroom separates the shower area from the toilet and vanity zone. This arrangement helps keep the main bathroom floor drier and improves comfort for family or shared accommodation.
A glass partition separates the wet shower area from the toilet, wash basin and storage cabinet.
Toilet, vanity, basin, mirror, shower system, exhaust fan and water-heater options are available.
Water-resistant wall panels, bathroom flooring and drainage components can be installed at the factory.
Three Independent Rooms Arranged Side by Side
Each bedroom is separated by an internal partition wall and has its own entrance from the shared living area. Bed type, wardrobes, bedside cabinets, windows and interior finishes can be selected according to occupancy requirements.
Bedroom 1
- Double-bed or queen-bed configuration
- Wardrobe and bedside cabinets optional
- Private window for daylight and ventilation
- Suitable as the main family bedroom
Bedroom 2
- Double bed, single bed or twin-bed layout
- Storage furniture can be customized
- Independent door from the shared area
- Suitable for adults, children or guests
Bedroom 3
- Private room positioned beside Bedroom 2
- Single, double or bunk-bed configuration
- Furniture package available as an option
- Suitable for family or project accommodation
Interior Options
- Wall and ceiling finish customization
- PVC, SPC or laminate flooring options
- Lighting, sockets and switches
- Curtains, wardrobes and furniture packages
Factory-Built for Expansion and Overseas Delivery
The main structure uses galvanized steel beams, columns and folding components. The two side wings are connected to the central unit through heavy-duty hinges, allowing the building to remain compact during transport and expand into a complete house on site.
Galvanized Steel Frame
- 80 × 140 × 3.0mm main side beams
- Galvanized columns and formed steel components
- Powder-coated protective surface
- Designed for folding transportation
Expandable Wings
- Two side sections unfold from the central body
- 130mm galvanized folding hinges
- Roof and floor sections expand together
- No separate container connection required
Insulated Enclosure
- 65mm EPS external wall panels
- 50mm internal partition panels
- Insulated roof-panel system
- Alternative insulation materials available
Factory Preparation
- Electrical wiring and distribution protection
- Water-supply and drainage interfaces
- Doors, windows and interior partitions
- Kitchen and bathroom installation options
Compact Shipping, Complete Space After Expansion
Before delivery, both wings are folded into the central structure, reducing the house width to approximately 2200mm. After unloading and placement on a prepared foundation, the side sections are unfolded and secured to form the complete three-bedroom house.
Compact transport state suitable for international shipping.
Large usable space after both expandable wings are opened.
The complete house expands from one integrated structure.
Standard loading quantity for the 40ft three-bedroom model.
Suitable for Family and Project Accommodation
The combination of three private bedrooms and a large common area makes this model suitable for residential use, commercial accommodation and overseas project housing.
Three private bedrooms with comfortable shared living space.
Modular accommodation for resorts, farms and tourism projects.
Three-bedroom units for short-term or long-term rental projects.
Private rooms and shared facilities for project personnel.
Residential buildings for construction, mining and infrastructure sites.
Rapid-deployment family accommodation for relocation projects.
Spacious guest accommodation with kitchen and private rooms.
Interior materials and facilities customized for local markets.
Frequently Asked Questions
How are the three bedrooms arranged?
The three bedrooms are positioned directly next to one another in one continuous private zone. There is no corridor between the bedrooms, and each room opens directly toward the shared living area.
How much space does the house provide?
The standard expanded size is L11800 × W6220 × H2480mm, providing approximately 72m² of usable floor area.
Is the kitchen separate from the living area?
Yes. The standard three-bedroom layout provides a more independent kitchen zone with cabinets, countertop, sink and appliance positions.
Does the bathroom have dry-wet separation?
Yes. A glass partition can separate the shower area from the toilet, vanity and wash-basin zone.
Does the house require multiple containers to be joined on site?
No. The two side wings are integrated with the central structure and unfold outward. The house does not require separate container units to be connected at the project site.
Can the electrical system meet local standards?
Yes. Voltage, frequency, sockets, switches, cables and circuit protection can be customized according to the destination country.
How many units can be loaded in one 40HQ?
The standard loading quantity is approximately one 40ft three-bedroom expandable container house per 40ft high-cube shipping container.
What information is required for a quotation?
Please provide the required quantity, destination port, insulation choice, kitchen and bathroom configuration, furniture requirements and local electrical standard.
Planning a Three-Bedroom Expandable House Project?
Send us your required quantity, destination port, insulation choice and interior configuration. We will prepare a suitable layout, loading plan and export quotation.
