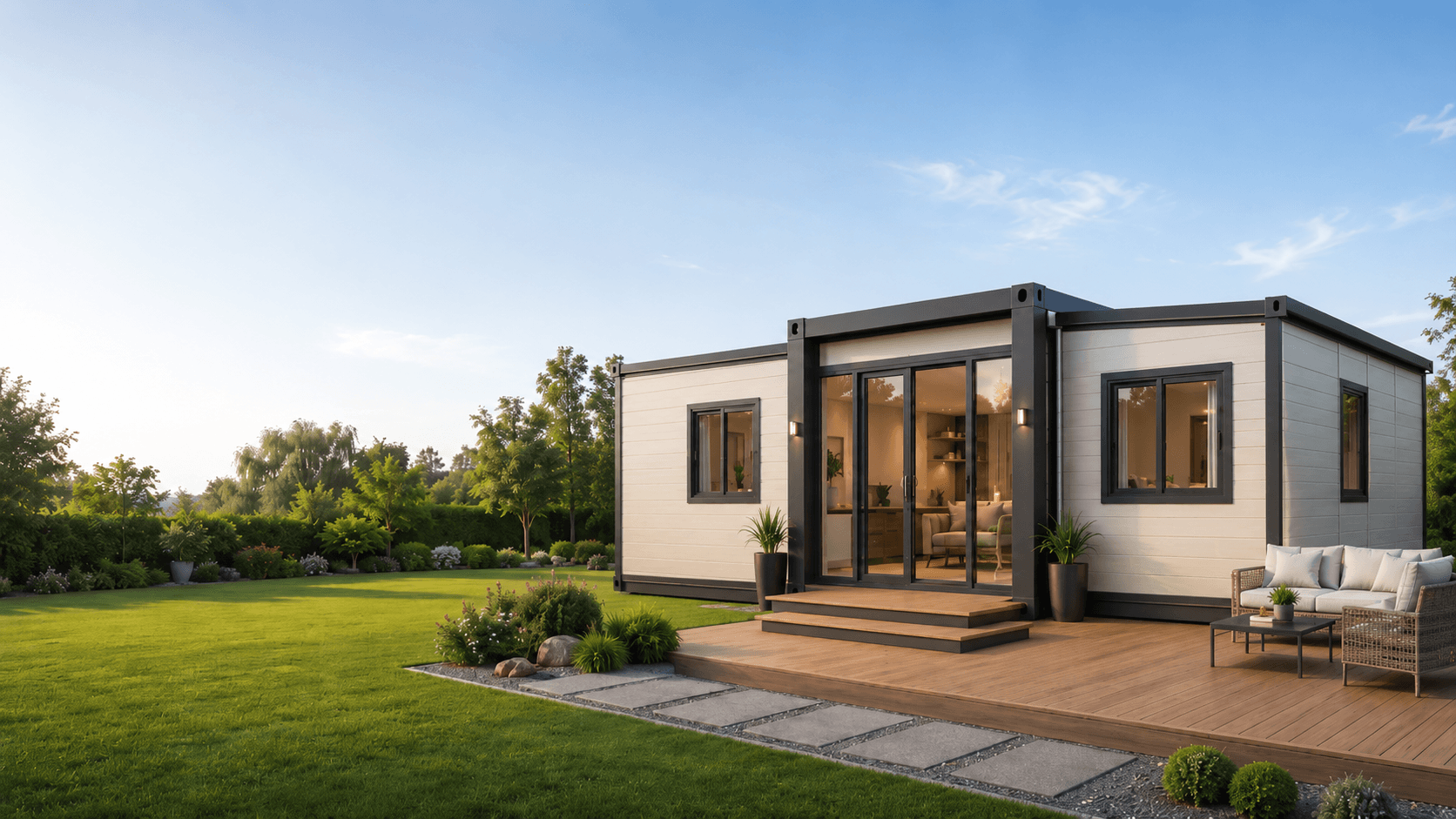

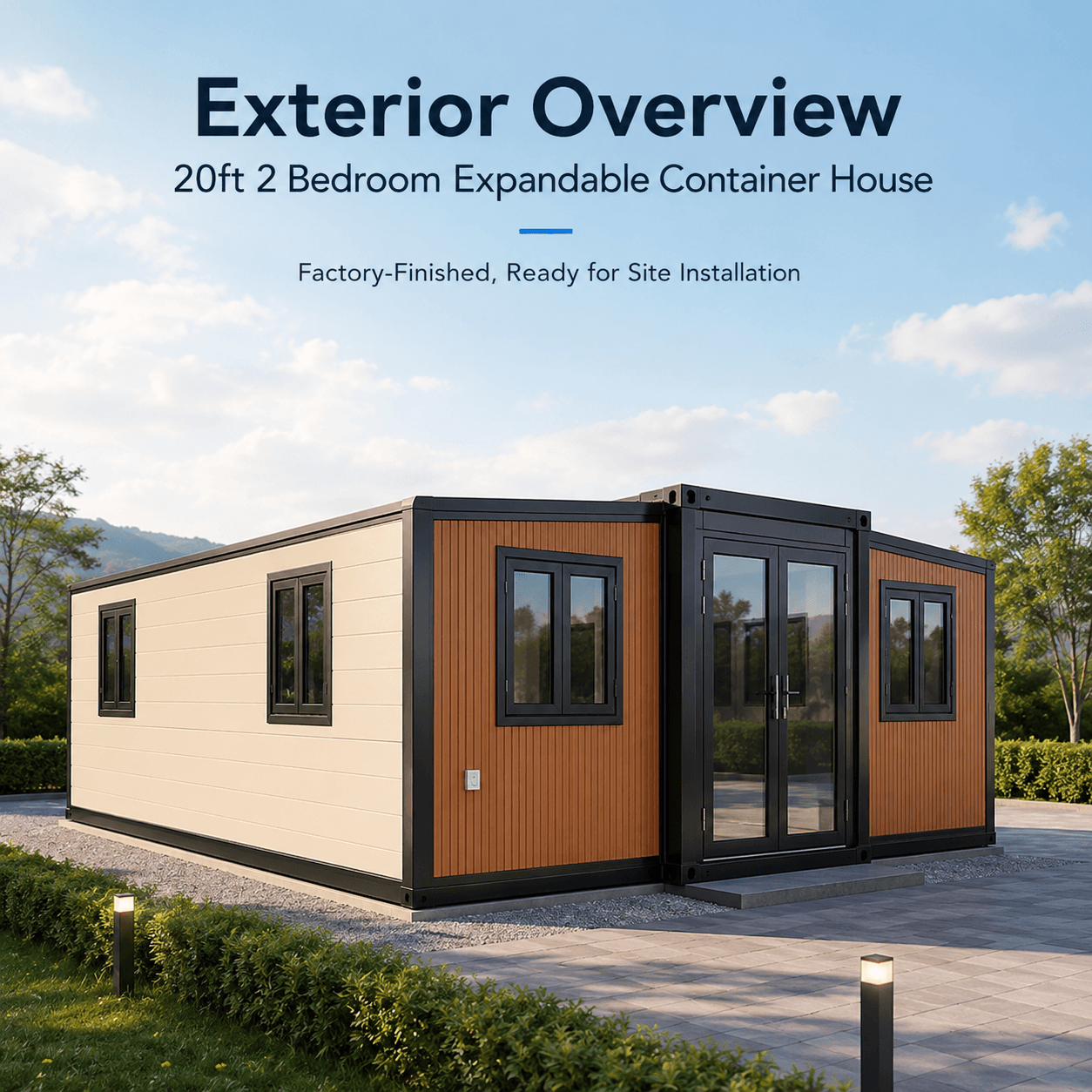

20ft 2 Bedroom Expandable Container House
Approx. 33.5㎡ Interior
Kitchen & Bathroom
2.2m Folded Width
2 Units / 40HQ
- Compact family homes and backyard residential units
- Holiday cabins, resorts and rental accommodation
- Worker housing and temporary project accommodation
- Factory-finished modular housing projects
Two Private Bedrooms in One Expandable Home
A factory-prefabricated modular house with two bedrooms arranged on the same side, shared living and dining space, a compact kitchen and an integrated bathroom.
Approx. 33.5㎡ Interior
Integrated Bathroom
2 Units / 40HQ
A Practical Two-Bedroom Modular Home
Both bedrooms are positioned together on one side of the layout, separating the private sleeping area from the shared living, dining, kitchen and bathroom spaces.
Two bedrooms are grouped on the same side for better privacy and more efficient use of space.
Wall panels, flooring, wiring, doors and selected fixtures can be completed before shipment.
The house folds to a transport width of approximately 2.2m and expands after arrival.
Standard Product Information
Materials, fixtures and electrical specifications can be adjusted according to the destination market and confirmed project requirements.
20ft 2 Bedroom Expandable Container House
L5900 × W6300 × H2480mm
L5460 × W6140 × H2240mm
L5900 × W2200 × H2480mm
Approximately 33.5㎡
2 bedrooms, living area, dining area, kitchen and bathroom
Two bedrooms positioned on the same side
Q235B hot-dip galvanized steel frame
50 / 75 / 100mm EPS, PU or rock wool sandwich panels
18mm MGO fire-resistant board with PVC flooring
Aluminum frames with double-glazed glass options

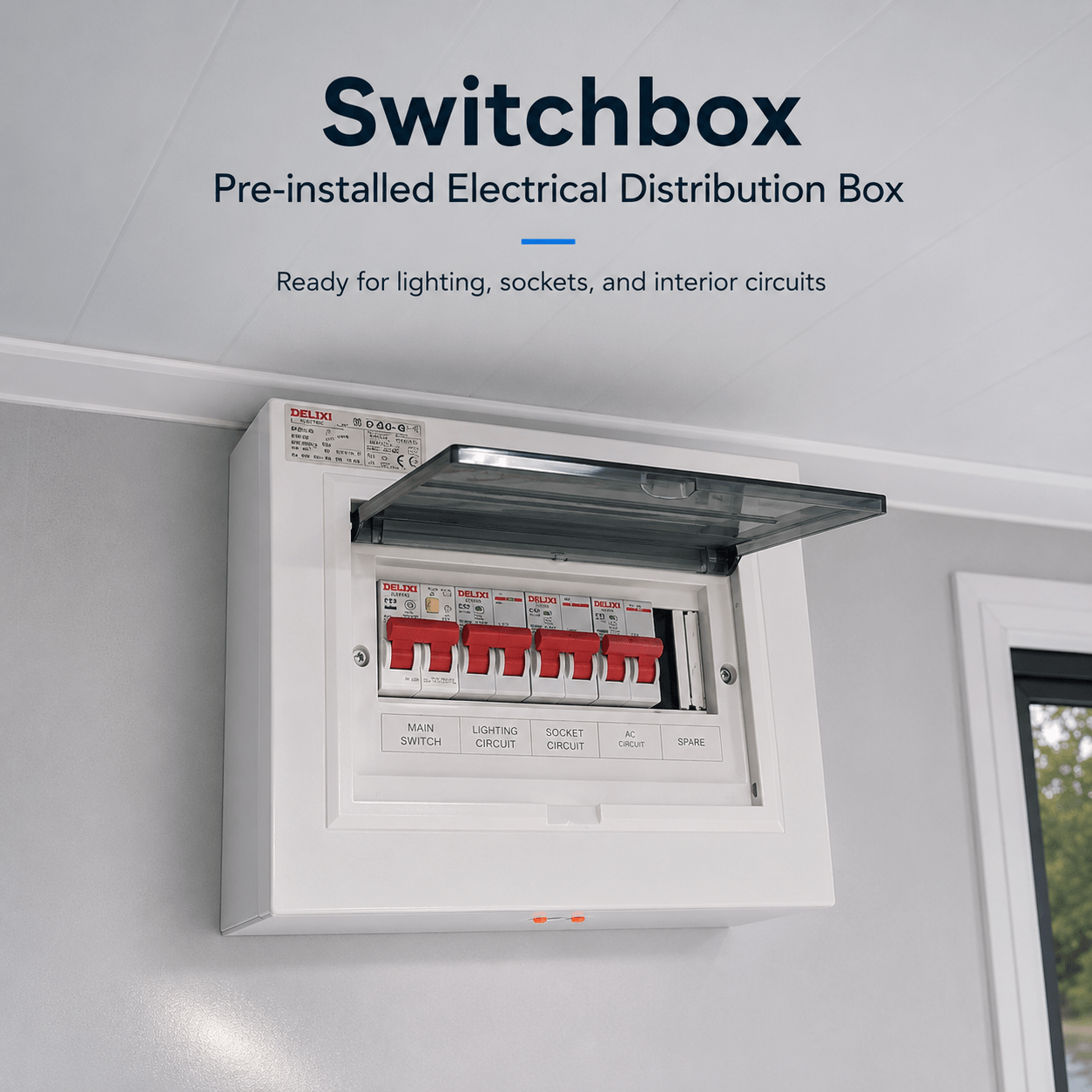

Distribution box, wiring, lights, switches and sockets
Integrated toilet, vanity and shower configuration
Approximately 3–5 workers / 1–2 hours
Approximately 2 units per 40HQ
EXW, FOB, CFR and CIF available

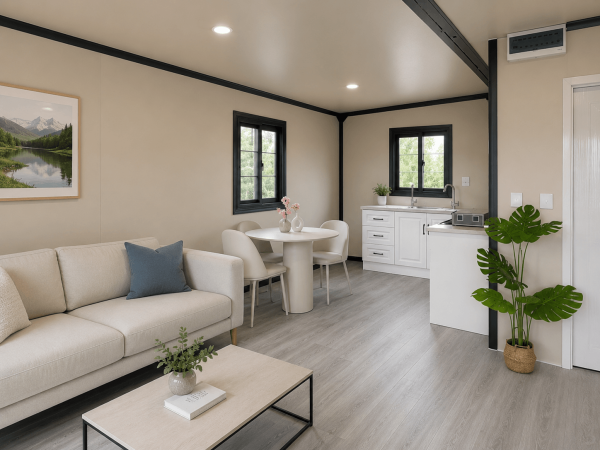

Two Bedrooms with Shared Living Space
The two bedrooms form a private sleeping zone, while the remaining interior accommodates the living room, dining area, kitchen and bathroom.
Double beds, single beds, twin beds and storage furniture can be selected.
Space is available for a sofa, dining table and compact kitchen configuration.
Flooring, cabinets, wall finishes and furniture can be adjusted by project.
Factory-Installed Sanitary Configuration
The bathroom can be completed at the factory with sanitary fixtures, waterproof finishes and utility interfaces for faster site connection.
Toilet, shower enclosure, vanity, wash basin, mirror and water-heater options are available.
Easy-clean wall panels, bathroom flooring and shower-area finishes can be supplied.
Water supply, drainage and electrical interfaces can be prepared before shipment.
Galvanized Steel Frame and Insulated Panels
The main structure and enclosure materials can be selected according to climate, fire-performance requirements and project budget.
Main Structure
- Q235B hot-dip galvanized steel
- Welded anti-corrosion construction
- High-strength expansion hinges
- Mechanical locking system
Building Materials
- EPS, PU or rock wool wall panels
- 18mm MGO fire-resistant floor board
- PVC, SPC or laminate flooring options
- Double-glazed door and window options
Pre-Installed Electrical, Plumbing and Sanitary Systems
Electrical circuits, water and drainage interfaces, external power connections and bathroom utilities can be prepared at the factory for faster installation after delivery.

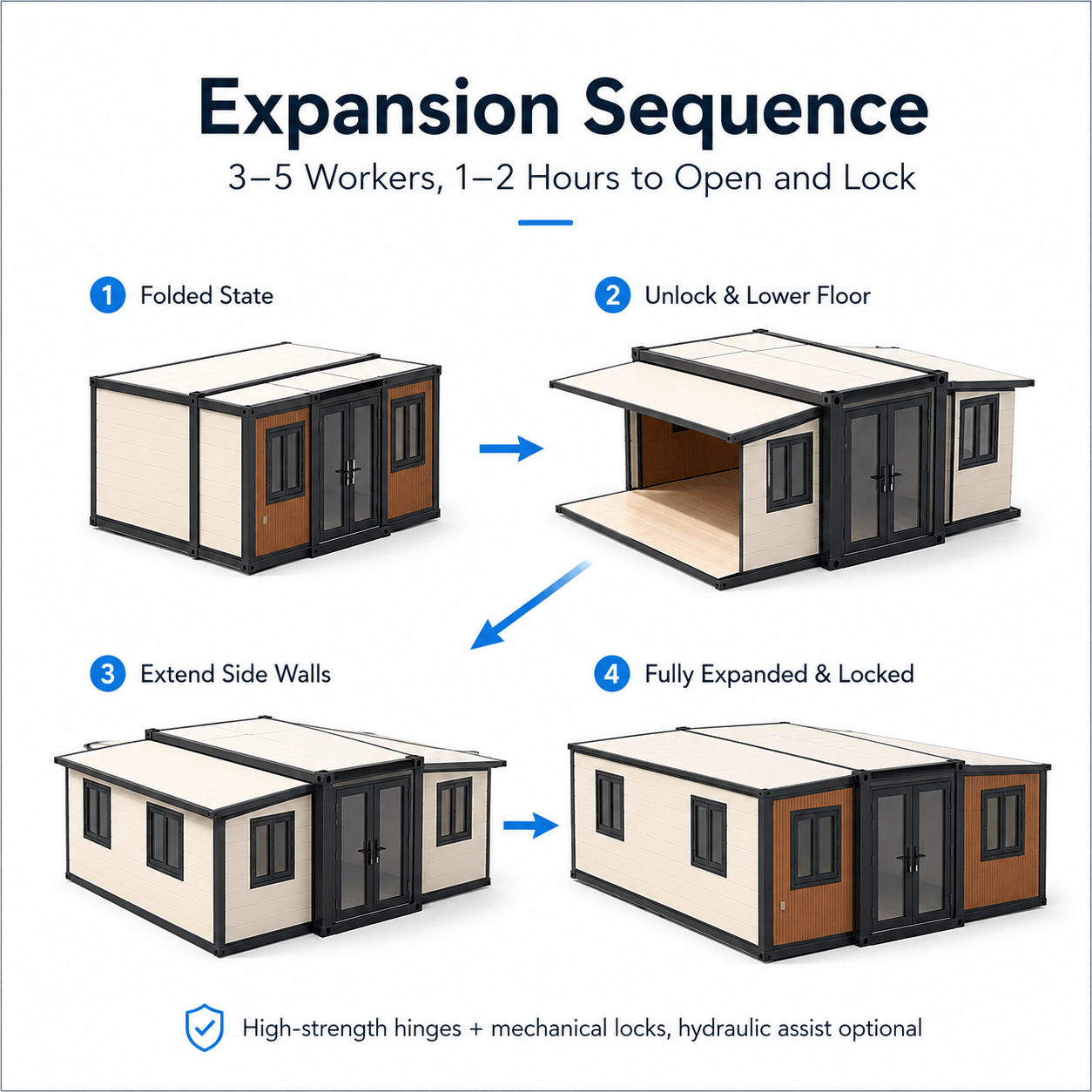

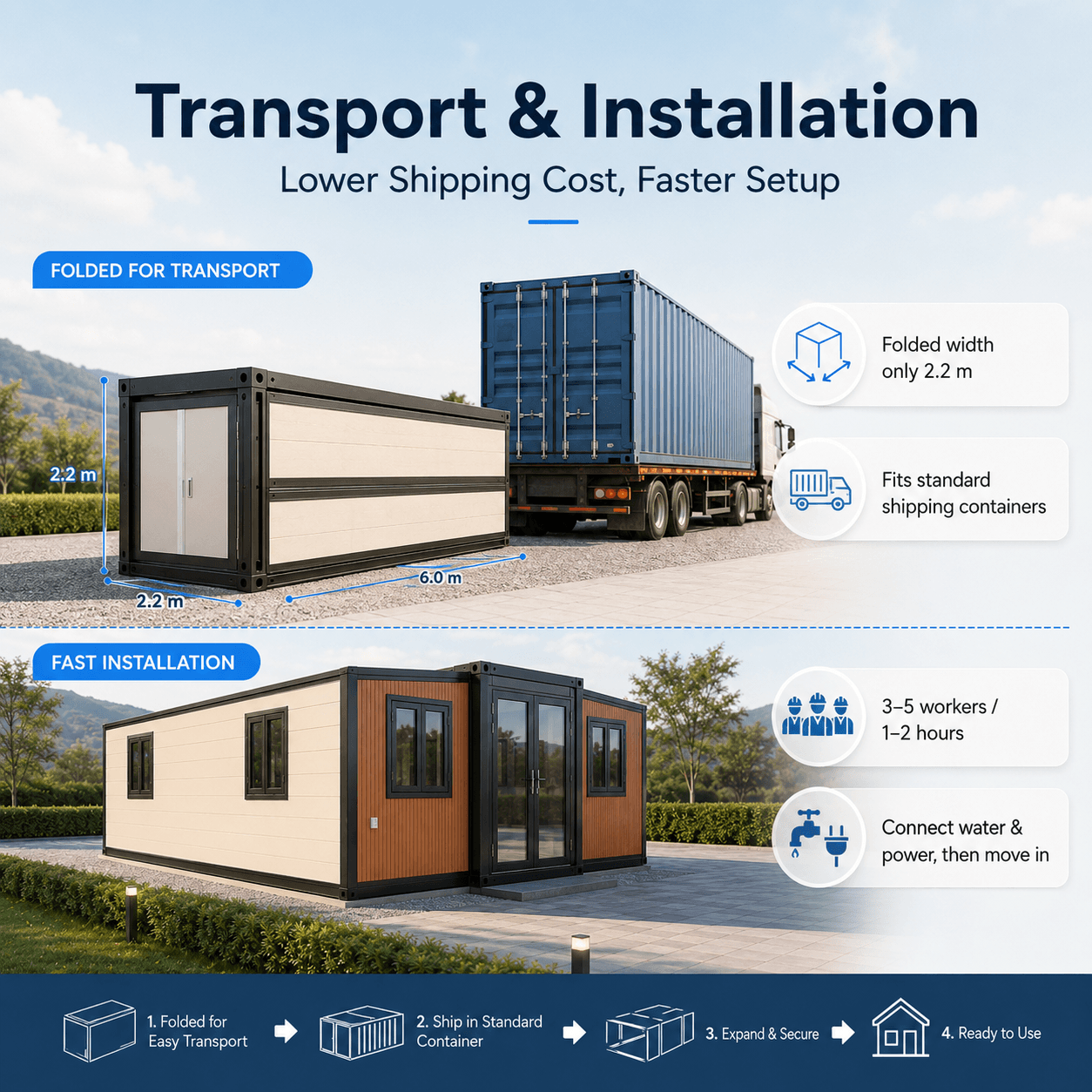

Compact Shipping and Fast Site Installation
The house is transported in its folded condition and expanded after placement on a prepared level foundation.
Compact transport dimensions for overseas delivery.
Approximately 3–5 workers can complete the main setup in 1–2 hours.
Connect external electricity, water supply and drainage after installation.
The house can be folded and relocated again when required.
Suitable for Residential and Project Housing
Two private bedrooms with shared living space.
For resorts, campsites and tourism projects.
Independent modular accommodation for rental use.
Temporary accommodation for project personnel.
Frequently Asked Questions
Where are the two bedrooms positioned?
The two bedrooms are grouped on the same side, creating a separate private sleeping area.
What are the expanded and folded dimensions?
The expanded size is L5900 × W6300 × H2480mm. The internal size is L5460 × W6140 × H2240mm, and the folded size is L5900 × W2200 × H2480mm.
Can the kitchen and bathroom be included?
Yes. Kitchen cabinets, sanitary fixtures and plumbing systems can be included according to the confirmed quotation.
Can the electrical system meet local standards?
Yes. Voltage, frequency, sockets, switches, wiring and circuit breakers can be customized for the destination market.
How many units fit in one 40HQ?
Approximately two standard units can be loaded in one 40HQ, depending on the final configuration and packing requirements.
How can I receive an accurate quotation?
Please provide the quantity, destination port, insulation material, kitchen and bathroom requirements and local electrical standard.
Planning a Two-Bedroom Expandable House Project?
Send us your quantity, destination port, preferred materials and interior requirements. We will prepare a suitable proposal and quotation.
