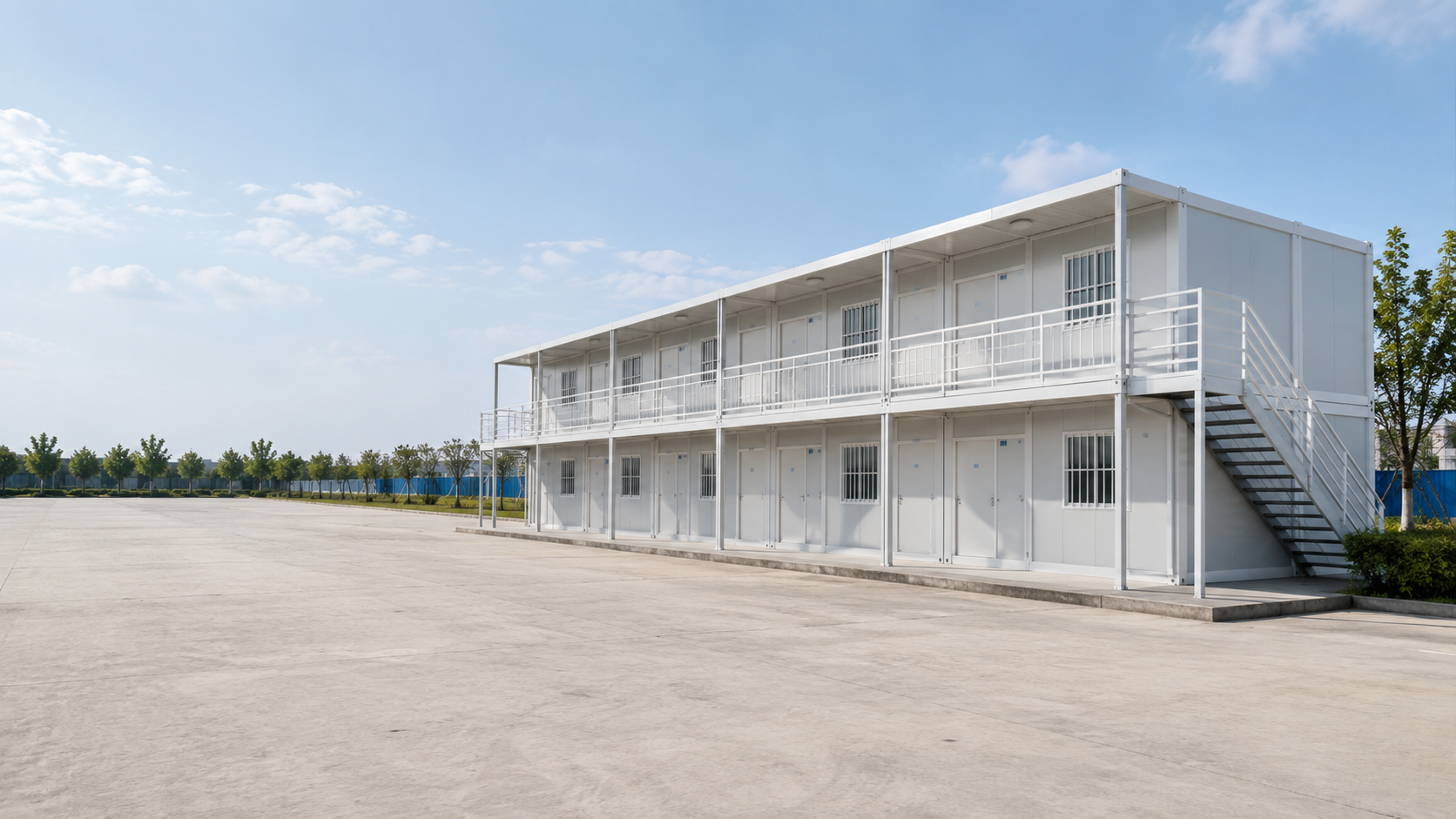

Flat Pack Container Dormitory for Worker Accommodation
4-Person Standard Layout
2–8 Person Options
Rock Wool Insulation
Bathroom Optional
- Construction worker accommodation and temporary project camps
- Mining,energy and remote-site staff housing
- Connected or two-storey modular dormitory buildings
- Customized rooms with beds,lockers,bathrooms and air conditioning
Flexible Worker Accommodation for Project Camps
A modular dormitory system designed for construction sites,
mining projects,industrial camps and temporary staff housing.
Standard units can be configured for two to eight residents
and combined into larger accommodation buildings.
4-Person Standard Layout
2–8 Person Options
Insulated Structure
Bathroom Optional

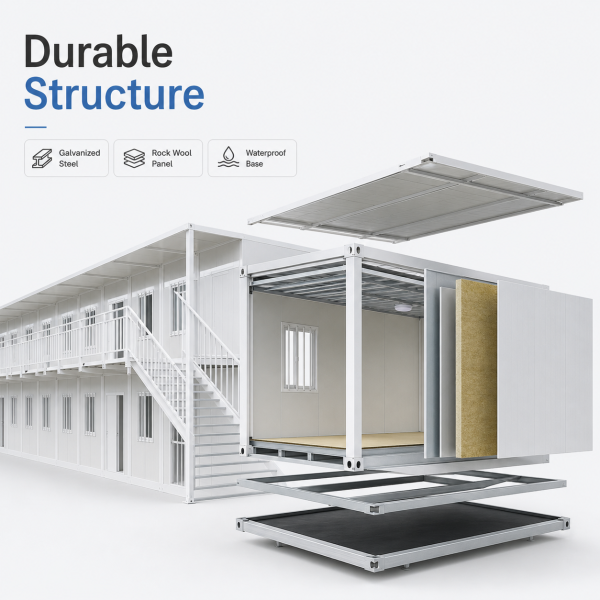

A Practical Dormitory Unit for Temporary Housing
The Flat Pack Container Dormitory combines a galvanized steel
frame,insulated wall panels,finished flooring,doors,windows and
basic electrical components. It can be supplied as an individual
room or connected with other units to form a complete worker camp.
Structural and enclosure components are prepared before shipment for organized site assembly.
Choose two-person,four-person,six-person or eight-person sleeping arrangements.
Beds,lockers,desks,air conditioning and sanitary facilities can be selected separately.

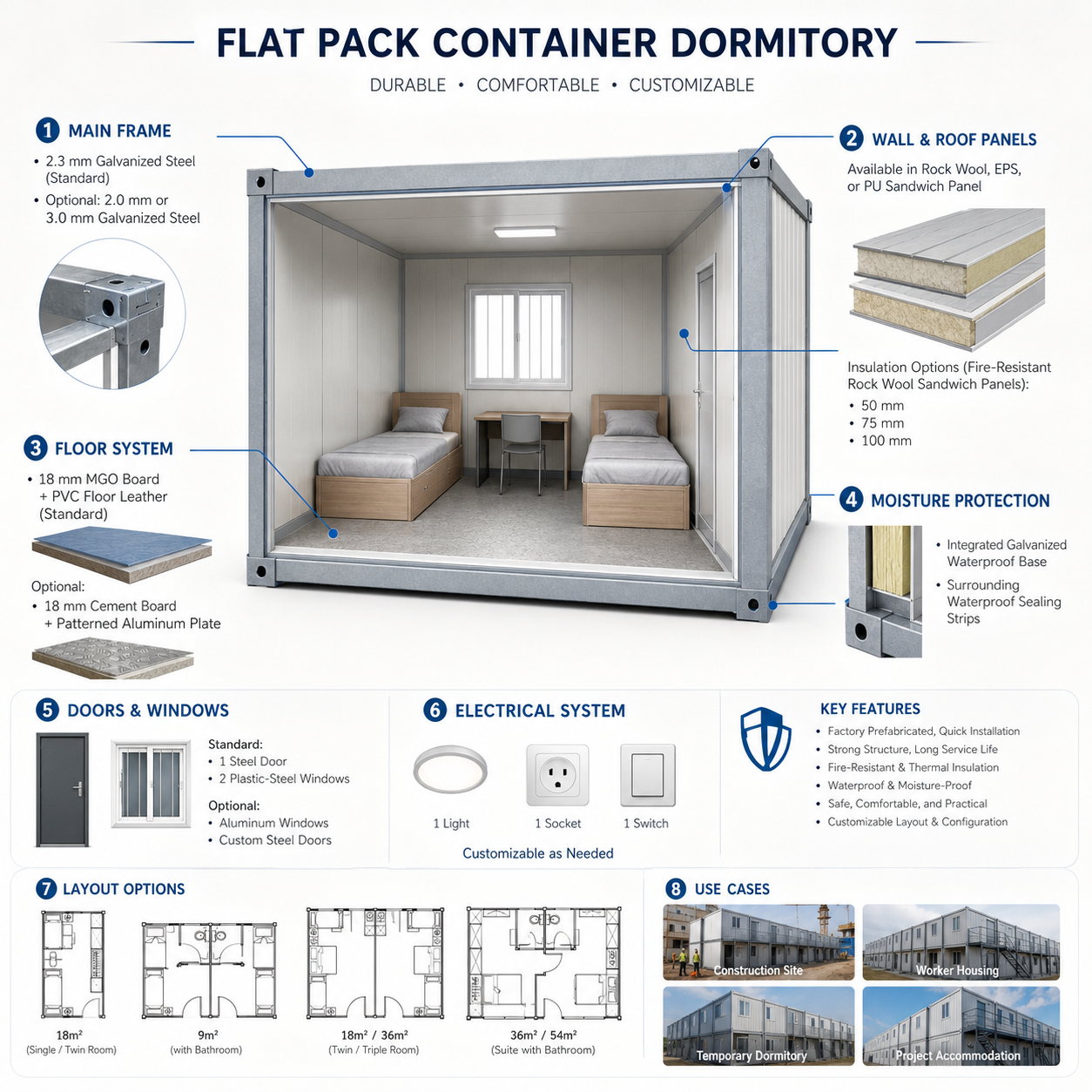

Standard Dormitory Configuration
Final materials,occupancy and equipment can be adjusted according
to the project capacity,climate,budget and local requirements.
Flat Pack Container Dormitory
5900 × 2438 × 2896mm
4 people with 2 steel bunk beds
2-person,6-person and 8-person configurations
2.3mm galvanized steel;2.0mm or 3.0mm options available
50mm,75mm or 100mm rock wool sandwich panels
Grade A fire-resistant rock wool insulation option
18mm cement-fiber board with anti-slip PVC floor finish
Patterned anti-slip metal floor plate
1 steel door and 2 plastic-steel windows as standard
1 light,1 socket and 1 switch;custom systems available
Private bathroom or shared sanitary module optional

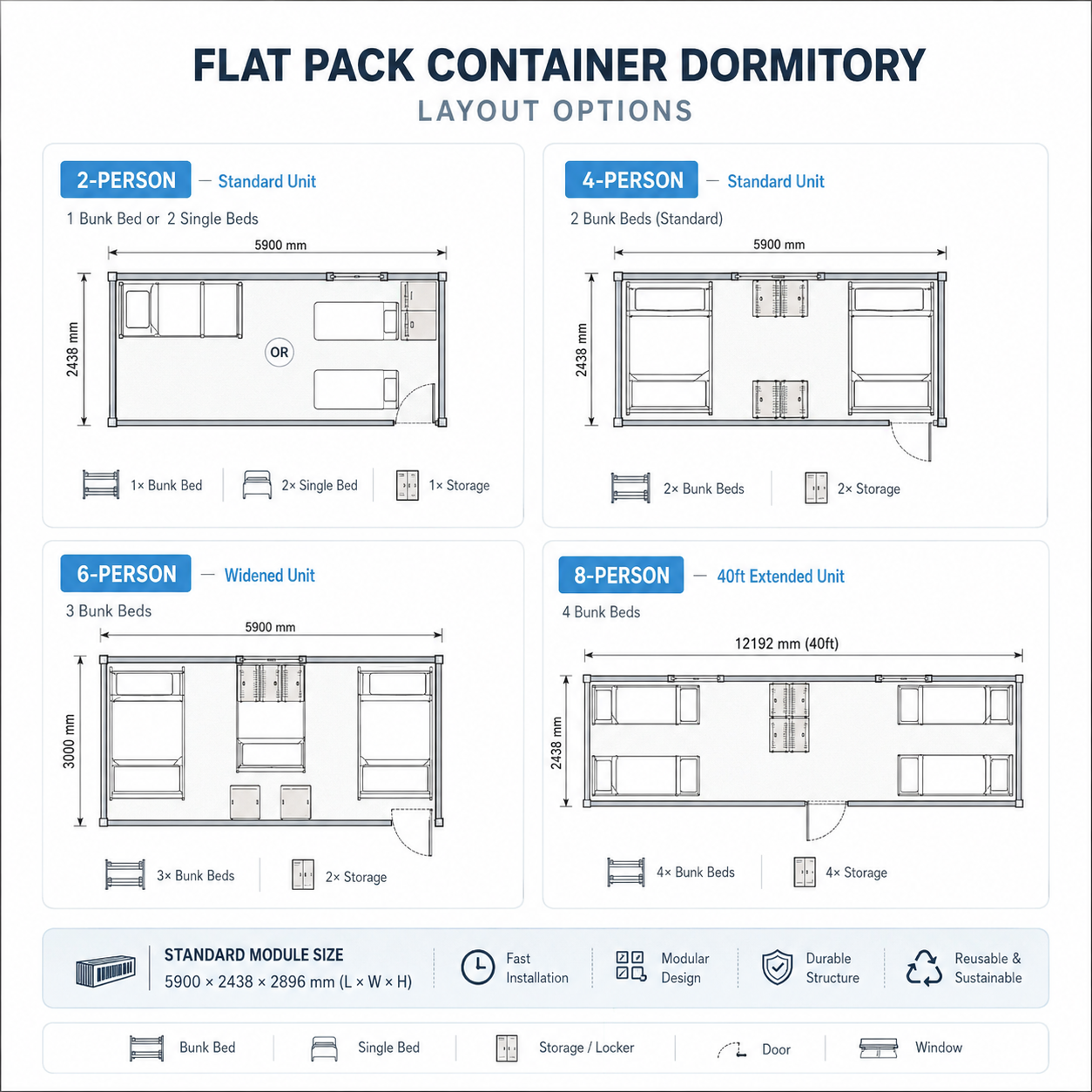

Sleeping Layouts for Different Project Capacities
Occupancy can be adjusted according to accommodation standards,
available site space and the required cost per resident.
One bunk bed or two individual steel beds.
Standard layout with two steel bunk beds.
Widened module with three steel bunk beds.
Extended 40ft module with four steel bunk beds.
Organized Sleeping Space for Daily Use
The standard four-person room uses two steel bunk beds positioned
to maintain a central walkway. Storage,desks,curtains and cooling
equipment can be added according to the project specification.
Rust-resistant bunk beds or individual steel bed frames are available.
Lockers,bedside cabinets and under-bed storage can be supplied.
Air conditioners,curtains,desks and additional electrical outlets are optional.
included in the confirmed quotation.
Durable Furniture for High-Frequency Accommodation
Bed and storage packages can be selected according to room
occupancy and the expected duration of the project.
1900 × 900 × 1750mm with a reinforced rust-resistant steel frame.
1900 × 900mm steel bed frame.
Individual lockers,shared wardrobes and under-bed boxes are available.
Private or Shared Sanitary Facilities
Private bathrooms can be integrated into selected single-room and
twin-room layouts. Larger camps may use separate communal toilet
and shower modules to preserve sleeping capacity.
Shower,toilet,washbasin and drainage within the accommodation unit.
Separate sanitary building for larger worker accommodation camps.
Private sleeping room with an integrated bathroom.
Two-person arrangement with a shared internal bathroom.
Configure the Dormitory Around Your Workforce
Structure,insulation,occupancy,furniture,electrical systems and
sanitary facilities can be adjusted according to the climate,
project duration and accommodation standard.
Frame thickness,size and single or multi-storey combinations can be evaluated.
Rock wool,EPS or PU wall panels and alternative floor finishes are available.
Beds,lockers,desks,air conditioning,bathrooms and extra electrical outlets can be added.
drawings,confirmed quotation and purchase contract.

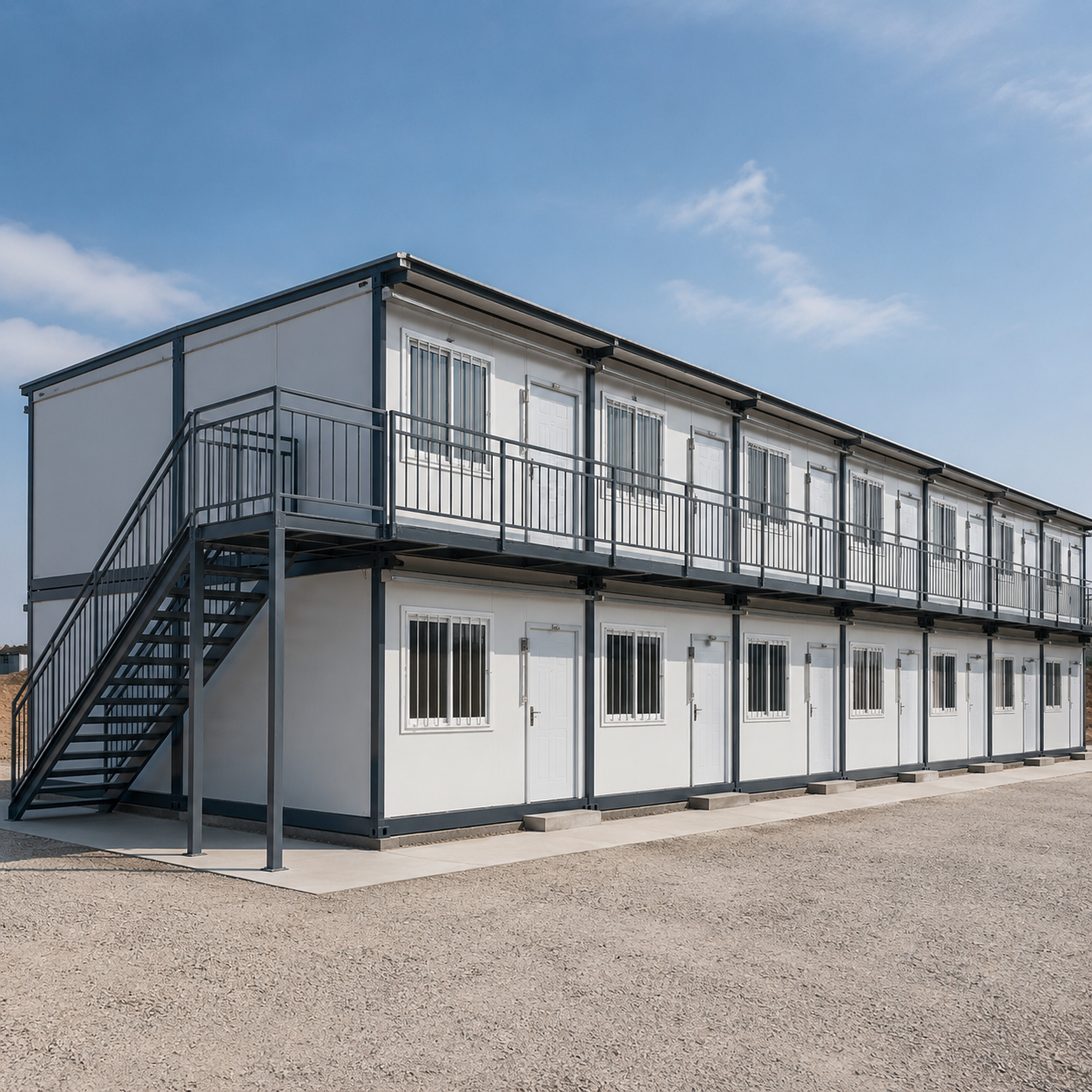

From Individual Rooms to Complete Worker Camps
Standard dormitory modules can be arranged side by side or stacked
to create accommodation blocks for larger project teams.
Independent room for a small workforce or management staff.
Multiple units arranged into a larger accommodation area.
Space-efficient accommodation with stairs,walkways and railings.
Dormitories combined with offices,bathrooms,dining and service modules.
foundation confirmation and compliance with local requirements.

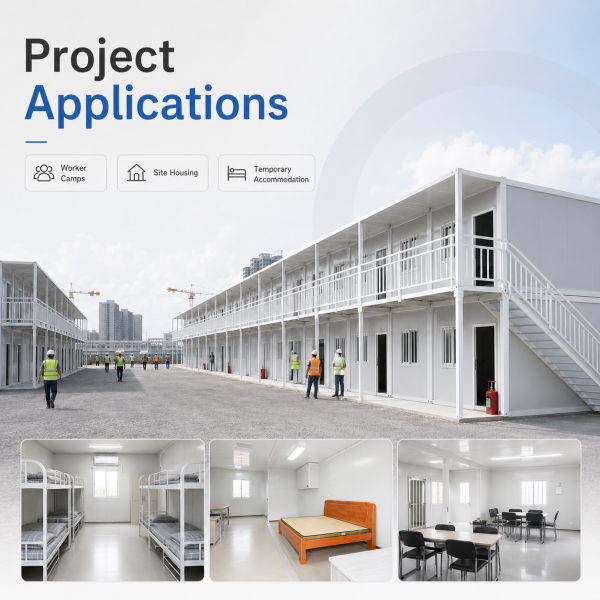

Accommodation for Temporary and Remote Projects
On-site accommodation for workers,engineers and supervisors.
Modular housing for remote and rotating workforces.
Temporary employee housing near factories and infrastructure projects.
Rapidly deployed temporary accommodation for urgent requirements.
Flexible accommodation for schools and training facilities.
Living units for logistics,oilfield and isolated project locations.
Frequently Asked Questions
How many people can one dormitory accommodate?
The standard 20ft unit accommodates four people with two bunk
beds. Two-person,six-person and eight-person configurations
are also available.
Are beds and lockers included?
Beds,lockers,mattresses,desks and other furniture are optional
and are supplied only when included in the confirmed quotation.
Can the dormitory include a bathroom?
Yes. A private bathroom can be integrated into selected layouts,
or separate communal toilet and shower modules can be supplied.
Can the wall panel thickness be customized?
Yes. Rock wool panels are available in 50mm,75mm and 100mm
thicknesses. EPS and PU panel options may also be selected.
Can several dormitory units be stacked?
Yes. Modules can be connected or stacked after structural,
foundation and local compliance requirements have been reviewed.
What information is required for a quotation?
Please provide the quantity,destination port,number of residents,
required layout,wall panel,furniture,electrical standard,
bathroom and air-conditioning requirements.
Planning a Worker Accommodation Project?
Send us your required quantity,destination port,number of
residents,preferred layout and equipment requirements.
We will prepare a suitable dormitory configuration and quotation.
